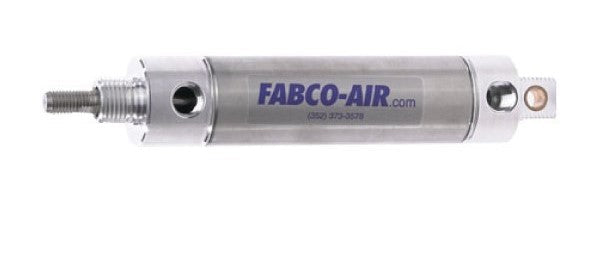

1-1/4" Bore x 2" Stroke, Double Acting, Rear Pivot w. Bumpers F-Series Cylinder
"F" Series are stainless steel body air cylinders that are the perfect solution for tight design budgets. This cylinder is reliable and is designed and built to maximize performance. It will exceed all of your light-duty cylinder application requirements.
- The 304 stainless steel air cylinder tube is drawn and polished for low friction and long life
- 303 stainless steel, ground, polished and roller burnished cylinder rods are a standard feature
- Roll-formed rod threads at both ends provides strength for customer connections as well as the internal piston connection. Oil impregnated sintered bronze bushing for excellent wear and long life
- Full-flow ports and cross-slots on the end caps allow air passage to the entire piston and seal area for quick response and full force performance
- Pressure rated to 250 PSIG pneumatic service
In stock Items ship within 48 hours; out of stock items have a 6-8 week lead time
